• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Courtenay (Brand); Various manufacturers

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339870

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7G 6K8G 6K7G 6B8G 6E5 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

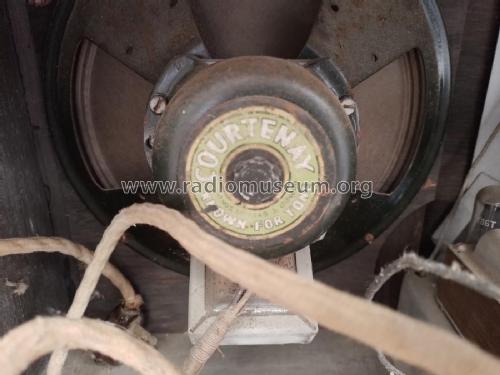

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 65 - Courtenay Brand; Various

• Shape
• Tablemodel, low profile (big size).

• Notes

• 7-Valve (including magic eye) superhet with RF stage dual wave table mantel receiver.

  Spin tuning plus 6 push button station selector. See Columbus Model 60 for circuit details.

  See also Columbus Model 65 Console and Columbus Model 65 Mantel.

  Manufactured by Radio Corporation Of NZ Ltd for Turnbull & Jones Ltd.

• Mentioned in
• -- Original prospect or advert (Evening Post 11 May 1939 Page 23)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
