66BC

Courtenay (Brand); Various manufacturers

Data
Forum
Pictures
Collections

  • Year
  • 1941 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354478

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 66BC - Courtenay Brand; Various
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 22 x 12 x 9 inch / 559 x 305 x 229 mm
  • Notes

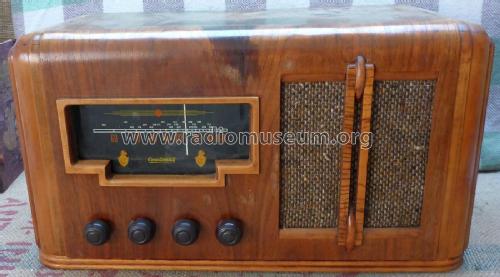

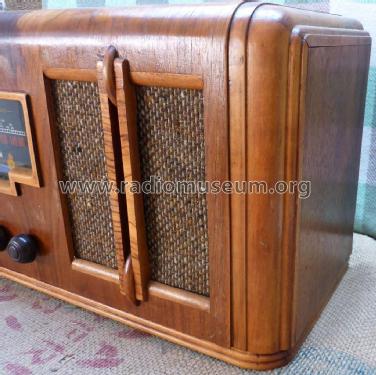

  • Courtenay 66BC

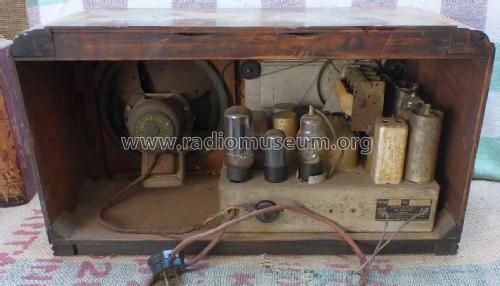

    6-valve broadcast (MW) superhet with RF stage mantel receiver. This receiver appears to be the only broadcast only model of the Courtenay and Columbus 66 series. All other known models are dual wave.

    See also Columbus Model 66 which appears to share the same chassis but dual wave.

  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
