• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Courtenay (Brand); Various manufacturers

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337120

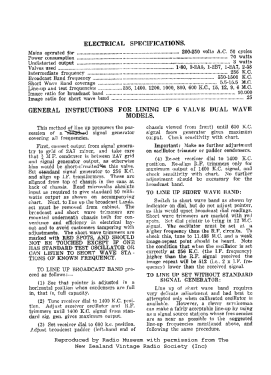

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 58 2A7 58 2B7 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 256 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

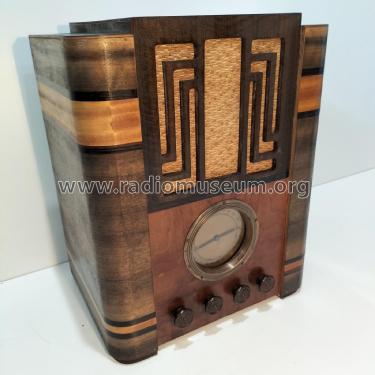

• Model: Courtenay 108 [Table Tombstone] - Courtenay Brand; Various

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 365 x 465 x 266 mm / 14.4 x 18.3 x 10.5 inch

• Notes

• Dual-band, 6 valve superhet with RF stage

  Manufactured for Turnbull and Jones by Radio Corporation of New Zealand.

  See also Courtenay Model 108 Console.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• The Golden Age of Radio in the Home 1986 (Page 62)

• Literature/Schematics (1)
• -- Original prospect or advert (Press 7 December 1934 Page 6)

• Literature/Schematics (2)
• -- Original prospect or advert (Manawatu Standard 19 December 1934 Page 3)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
