• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Courtenay (Brand); Various manufacturers

• Year
• 1942–1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346625

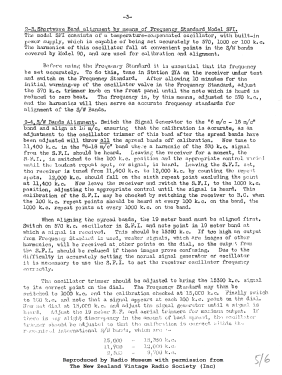

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7G 6J8G 6B8G 6J7G 6U5 or Y63 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

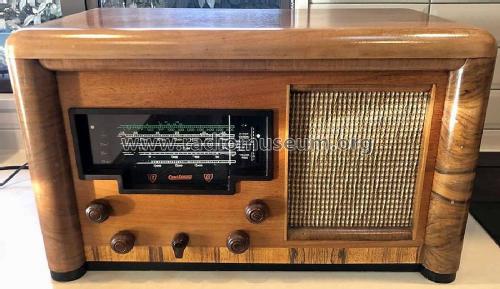

• Model: Renown 90 - Courtenay Brand; Various

• Shape
• Tablemodel, low profile (big size).

• Notes

• 7 valve (including magic eye) 5 band bandspread superhet with RF stage table receiver.

  Manufactured by Radio Corporation of New Zealand Ltd for Turnbull & Jones Ltd.

  See also Columbus 90.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
