• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• CQ, Stewart Warner (Brands), Hope Gibbons Ltd.; Wellington

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347791

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K7G 6K7G 6J7G 6K6G 6X5G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 50-133 Hz: 105-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

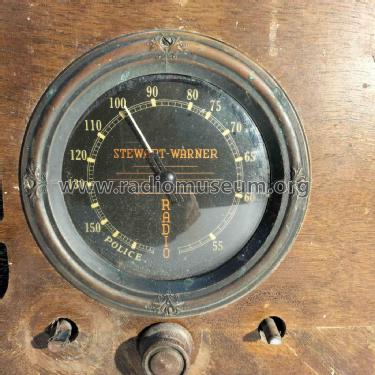

• Model: Stewart Warner R-167WS - CQ, Stewart Warner Brands,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 385 x 260 x 225 mm / 15.2 x 10.2 x 8.9 inch

• Notes

• 5 valve broadcast, with police, superhet with table chest model cabinet.

  Marketed throughout New Zealand by distributor Hope Gibbons Ltd.

  Made in the USA. See also R-167S series chassis.

  Chassis R167S is employed in several models;
  R167AS = 115 V (60 cycles)
  R167BS = 115 V (25 cycles)
  R167KS = 220 V (50 cycles, export model)
  R167WS = 105-250 V (50-133 cycles, export model)
  speaker mounted on the chassis.

• Mentioned in
• -- Original prospect or advert (Auckland Star 26 May 1937 Page 17 (Ascot Cabinet))

• Literature/Schematics (1)
• Rider's Perpetual, Volume 9 = 1938 and before

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
