Tape Recorder 212 Japan 704

• Country
• United States of America (USA)

• Manufacturer / Brand
• Craig Panorama Inc.; Los Angeles, CA

• Year
• 1967 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 133091

• • Brand: Vista

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SB303 2SA203 2SB186 2SB186 2SB22 2SB22 2SB187 1N60

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage

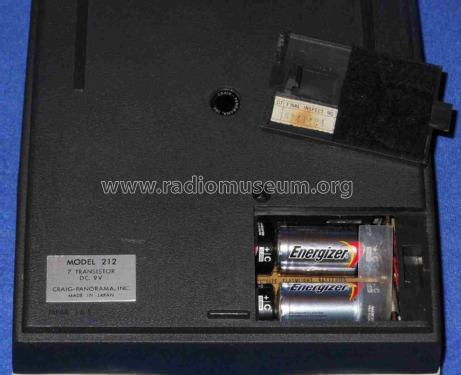

• Batteries / addl. power jack / C: 6 x 1.5 / DC 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: Tape Recorder 212 Japan 704 - Craig Panorama Inc.; Los

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 7.875 x 3.25 x 9.75 inch / 200 x 83 x 248 mm

• Notes

• Craig Tape Recorder 212;
  Open-reel tape recorder, 2 speeds 3¾ and 1⅞ ips, half track, reel size 3¼" (maximum).

  117 V AC operation with adaptor. Weight including batteries.

  Made in Japan 704

  See also the original Sanyo model Tape Recorder MR-212

• Net weight (2.2 lb = 1 kg)
• 4 lb (4 lb 0 oz) / 1.816 kg

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• Photofact TR Tape Recorder Manual SAMS (TR-42, Sept. 1968)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
