Powerplay S683

Craig Panorama Inc.; Los Angeles, CA

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 342292
    • Brand: Vista

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Special Tape or Cassette-Format
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 24 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Powerplay S683 - Craig Panorama Inc.; Los
  • Shape
  • Chassis only or for «building in»
  • Notes

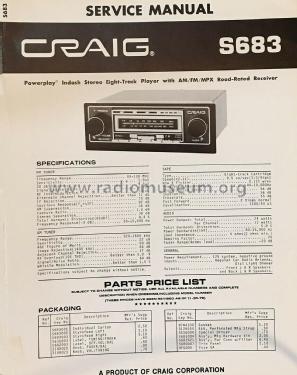

  • Powerplay Indash Stereo Eight-Track Player with AM/FM/MPX Road-Rated Receiver Model Craig S683

    12 watts per channel into 4 Ohms, 80 - 15000 Hz, 5% THD

    FM 88 - 108 MHz (30 - 15000 Hz)
    AM 520 - 1640 kHz

    Eight - track cartridge  (40- 10000 Hz)

  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
