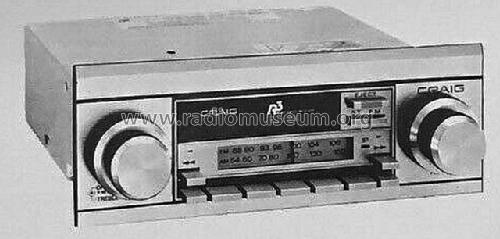

Road Rated AM/FM Stereo Cassette Player T641
Craig Panorama Inc.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Craig Panorama Inc.; Los Angeles, CA
- Year
- 1981 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 343595
-
- Brand: Vista
Craig Service Manual
Craig Service Manual
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Road Rated AM/FM Stereo Cassette Player T641 - Craig Panorama Inc.; Los
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 50 x 132 mm / 7.1 x 2 x 5.2 inch
- Notes
-
Road Rated AM/FM Stereo Cassette Player Model Craig T641
4 Watts per channel into 4 ohms, 100 - 20000 Hz, 5% THD
Tuning Range:
AM 530 - 1610 kHz
FM 87.9 - 107.9 MHz30 - 15000 Hz +2 /- 6dB
Standard Cassette Tape, 4,76cm/s
40 - 10000 Hz +0 / -6dB
Wow & Flutter 0.15% WRMS
- Net weight (2.2 lb = 1 kg)
- 1.7 kg / 3 lb 11.9 oz (3.744 lb)
- Mentioned in
- - - Manufacturers Literature (Craig Service Manual)
- Literature/Schematics (1)
- Photofact Auto Radio Series (AR-328, March 1982)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
