- Country
- United States of America (USA)
- Manufacturer / Brand
- Crescent Industries, Inc.; Chicago, IL
- Year
- 1956 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 294388

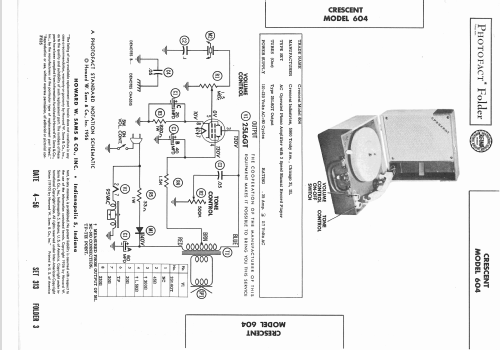

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25L6GT
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 604 - Crescent Industries, Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC Operated Phono Amplifier with 3 Speed Record Player . 1 Selenium Rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 313 Folder 3 Dated 04-1956)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
