• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340671

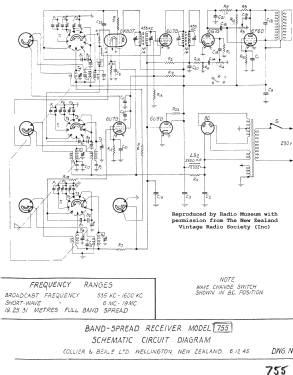

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6U7G 6K8GT 6U7G 6Q7G 6U5G 6F6G 80

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

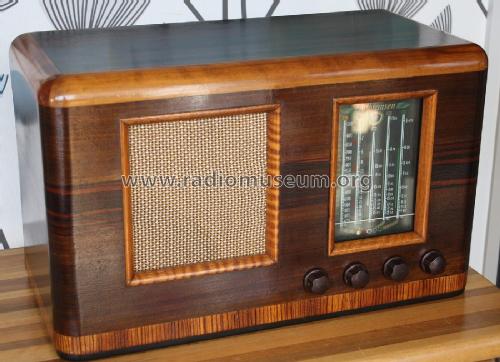

• Model: Gulbransen 755 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 360 x 290 mm / 22.8 x 14.2 x 11.4 inch

• Notes

• 7-Valve (including magic eye) superhet with RF 5 band bandspread receiver.

  Very similar to Model 756 1946.

• Price in first year of sale
• 47.00 NZ £

• Mentioned in
• -- Original prospect or advert (Te Awamutu Courier 15 February 1946 Page 6)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
