• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340668

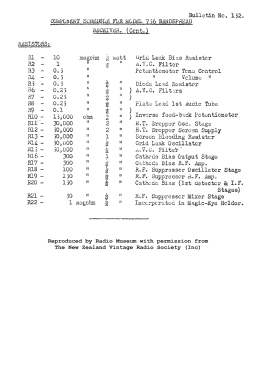

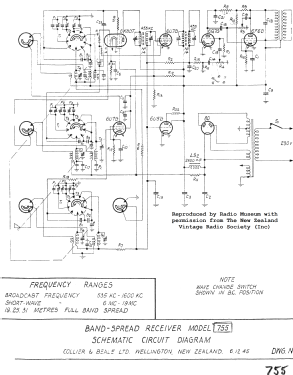

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6U7G 6K8GT 6U7G 6Q7G 6U5G 6V6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen 756 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 582 x 344 x 280 mm / 22.9 x 13.5 x 11 inch

• Notes

• 7-Valve (including magic eye) superhet with RF 5 band bandspread receiver.

  Very similar to Model 755 1945.

  See also Cromwell Model 756.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
