- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 342951

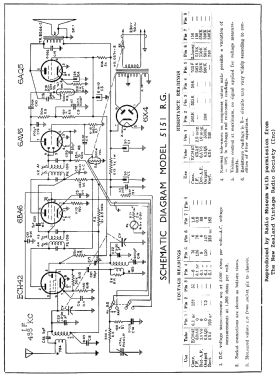

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cromwell 5151 RG - Cromwell, Gulbransen NZ,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
5-Valve superhet broadcast (MW) table model radiogram.
5 x 7 PM elliptical speaker.
3-speed record player or optional automatic 3 speed record changer NZ £49/10/-.
See also Gulbransen 5151/2 RGM.
- Price in first year of sale
- 44.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 12 August 1952 Page 11)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
