• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339500

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org

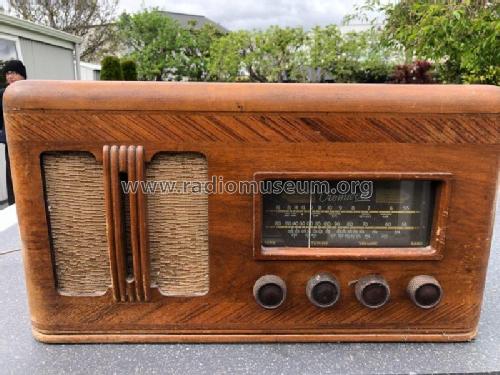

• Model: Cromwell 520 Success Table - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Notes

• 5-Valve dual wave table chest model receiver.

  See also Cromwell Model 520 Console and Gulbransen Model 425 Table.

  Manufactured by Collier & Beale Ltd for H. W. Clarke Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
