• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338754

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

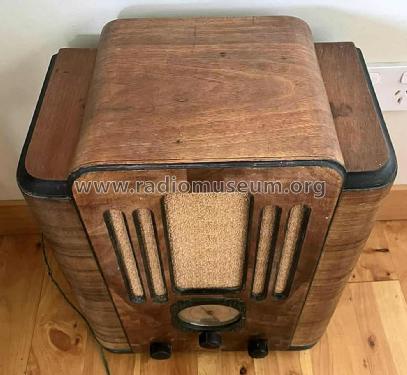

• Model: Cromwell 5AV Series 2 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• 5-Valve superhet broadcast (MW) radio.

  Series 2 which uses 6.3V valves.

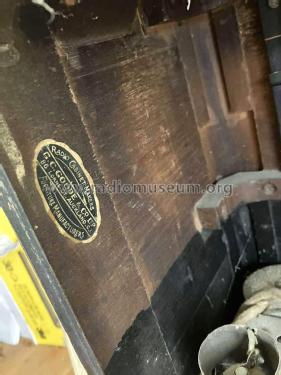

  Manufactured for H. W. Clarke Ltd by Collier & Beale Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
