• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353964

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 ECH21 6BA6 6AT6 or 6AV6 EM34 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

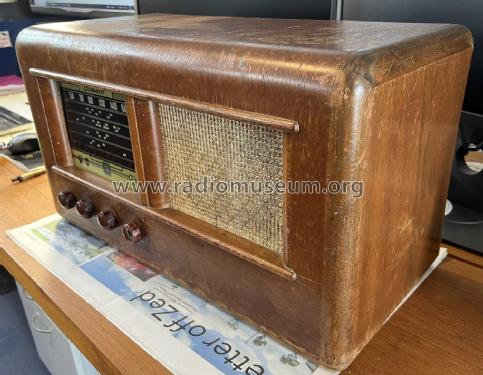

• Model: Cromwell 7251E [Mantel] - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 585 x 320 x 270 mm / 23 x 12.6 x 10.6 inch

• Notes

• Cromwell Model 7251E Mantel Receiver

  7-Valve (including magic eye) superhet with RF stage dual wave mantel receiver with 8" speaker.

  See also model 7251E console radiogram & 7251E table radiogram.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
