• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342799

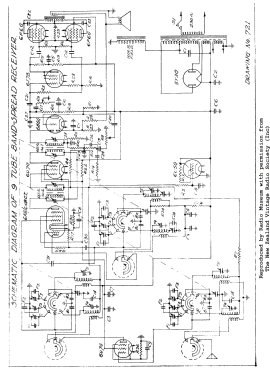

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6U7G 6K8 or 6K8G 6U7G 6B6G 6U5G 6J7G 6G6G 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cromwell C951-A [Series 1] - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Notes

• 9-Valve (including magic eye) superhet with RF stage bandspread receiver.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
