Cromwell The "Smart" Portable S16

Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1940 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 355761

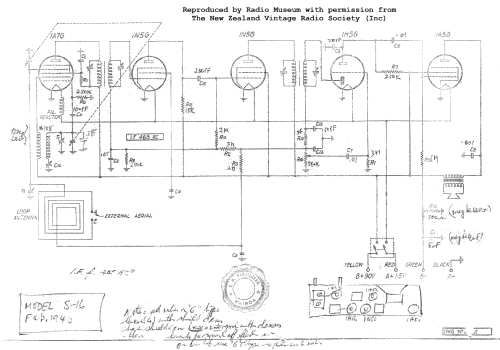

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Cromwell The "Smart" Portable S16 - Cromwell, Gulbransen NZ,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 13.75 x 8.5 x 7.88 inch / 349 x 216 x 200 mm
  • Notes

  • Cromwell The "Smart" S16 Portable

    5-Valve Low Drain, Portable Broadcast Battery Set. Ideal for the beach, the launch or take to the bach.

    Manufactured by Collier & Beale Ltd.

    See also Stella S16.

  • Net weight (2.2 lb = 1 kg)
  • 16 lb 12 oz (16.75 lb) / 7.605 kg
  • Mentioned in
  • -- Original prospect or advert (Wairarapa Times-Age 20 July 1940 Page 3)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
