Gulbransen 11352 New Symphony
Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339512

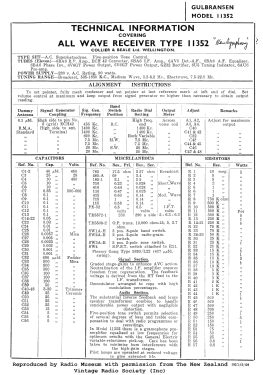

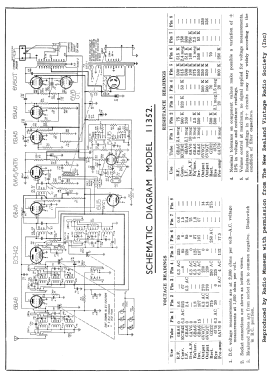

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Gulbransen 11352 New Symphony - Cromwell, Gulbransen NZ,
- Shape
- Console with any shape - in general
- Notes
-
11-Valve (including magic eye) superhet with RF stage all wave console radiogram.
Includes 5 position tone control, 3 speed record changer and gramophone preamplifier.
See also Model 11353 & Model 11355E & Cromwell Model 11352.
Manufactured by Collier & Beale Ltd for H. W. Clarke Ltd.
- Price in first year of sale
- 158.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 9 July 1953 Page 6)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
