• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355654

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

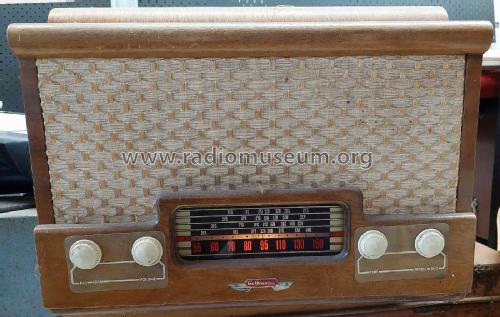

• Model: Gulbransen 5155RG - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Gulbransen 5155RG

  5-Valve broadcast (MW) table radiogram with automatic record changer and 5 x 7 elliptical PM speaker.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
