• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 348156

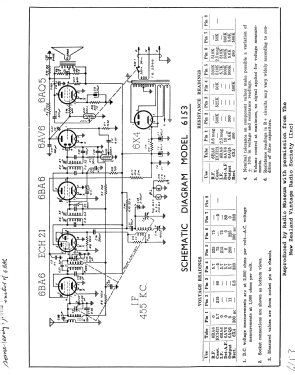

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 ECH21 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

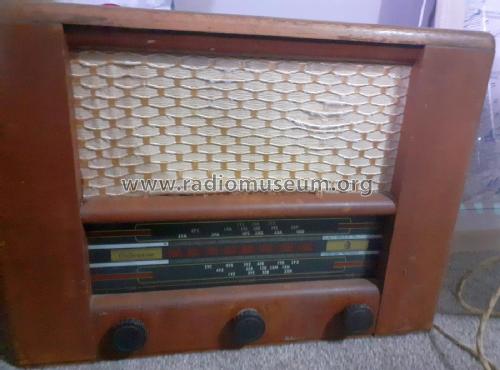

• Model: Gulbransen 6153 [Mantel] - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17.5 x 13 x 8.5 inch / 445 x 330 x 216 mm

• Notes

• 6 valve broadcast (MW) superhet with RF stage table chest model receiver.

  See also Gulbransen 6153 RG1 console radiogram using the same chassis.

• Mentioned in
• -- Original prospect or advert (Press 19 March 1954 Page 4)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
