• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342768

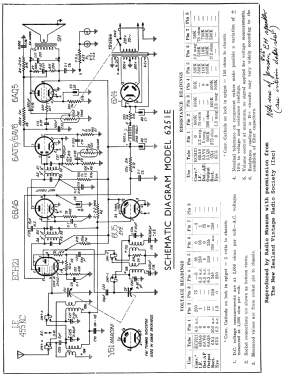

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 6BA6 6AV6 or 6AT6 6AQ5 6U5 or Y61 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen 6251E - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Notes

• 6-Valve (including magic eye) dual wave table model receiver.

  Jensen 9 x 6 electro-dynamic elliptical speaker.

• Mentioned in
• -- Original prospect or advert (Press 18 April 1952 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
