• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359892

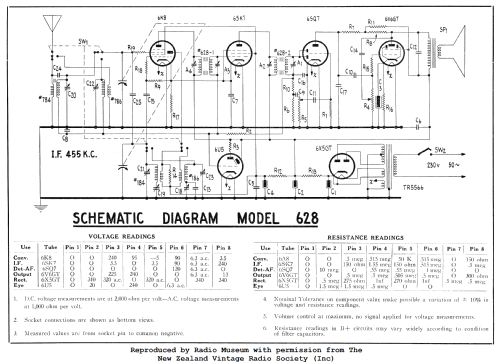

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8 6SK7 6SQ7 6V6GT 6U5 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen 628 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Gulbransen 628

  6-valve (including magic eye) superhet mantel model with easy-to-read rotating drum type dial and 8" PM speaker.

• Price in first year of sale
• 34.25 NZ £

• Mentioned in
• -- Original prospect or advert (Hauraki Plains Gazette 26 November 1948 Page 4)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
