• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 357972

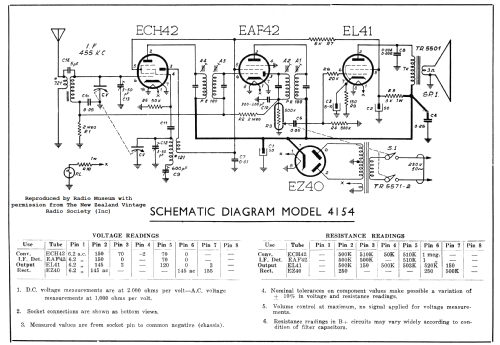

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EAF42 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Gulbransen Dinky 4154 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Gulbransen 4154 Dinky

  4-valve broadcast (MW) receiver with 6 x 4 elliptical speaker.

  Manufactured for H. W. Clarke Ltd by Collier & Beale Ltd.

  See also Pacemaker 4154.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
