• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359891

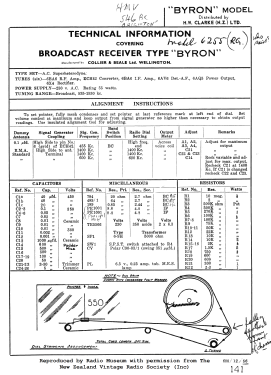

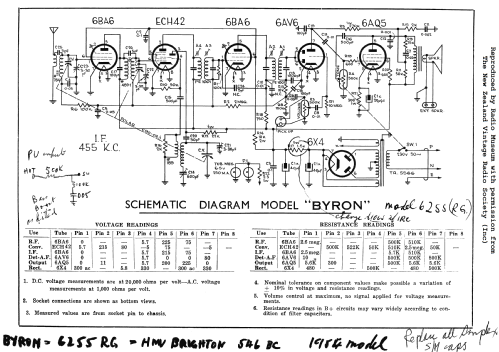

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 ECH42 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen Sable 6255RG [Table Radiogram] - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Gulbransen Sable 6255RG

  6-valve superhet with RF stage, dual wave, table radiogram with Garrard 3-speed record changer, and 6-9H PM speaker.

  Other models using this chassis include Gulbransen 6255 RG console, and Cromwell 6255RG console.

• Mentioned in
• -- Original prospect or advert (Press 22 November 1955 Page 6)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
