• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341335

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7S7 7B7 7C6 7C5 7Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pacemaker 519P - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Notes

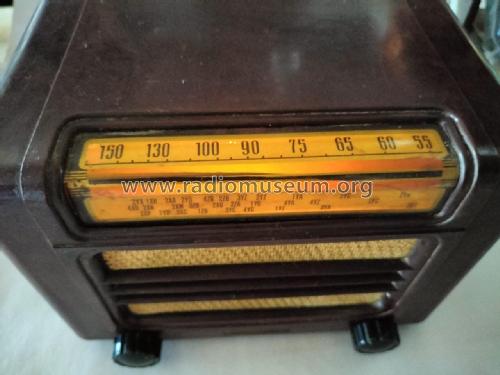

• 5-Valve superhet broadcast (MW) table model receiver.

  Suffix 'P' refers to permanet magnet speaker.

  Manufactured by Collier & Beale Ltd.

  See also HMV 495BC and State 519P.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
