• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345309

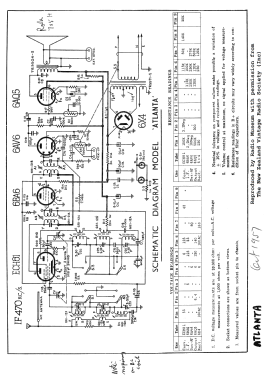

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Pacemaker Atlanta - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 220 x 160 mm / 13 x 8.7 x 6.3 inch

• Notes

• 5-Valve superhet all wave mantel receiver with 5x7 PM speaker.

  Manufactured for H. W. Clarke Ltd by Collier & Beale Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
