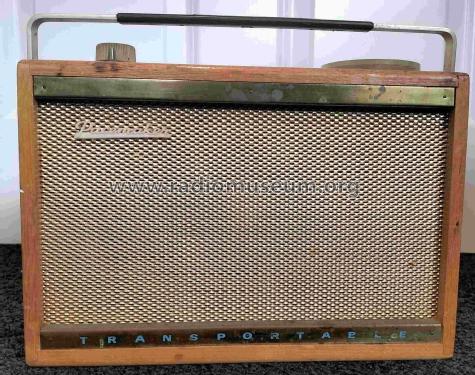

Pacemaker Transportable
Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 358431
- Number of Tubes
- 0
- Number of Transistors
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Pacemaker Transportable - Cromwell, Gulbransen NZ,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11 x 8.25 x 4 inch / 279 x 210 x 102 mm
- Notes
-
TRANSPORTABLE NZ WIDE RECEPTION from 7 matched transistors. Large 6in x 4in speaker and long-life battery. Light oak cabinet, sockets for car aerial, and earphone. £37/10/-.
Part of the Transportable Series from Collier & Beale Ltd.
- Transistor 8 Transportable 1957
- Transistorised-58 Trans-Portable 1958
- Transportable 1960 (This model)
- Sportable 1960
- Transportable TP63 1963
- Transportable TP64 1964
- Price in first year of sale
- 37.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 20 August 1960 Page 17)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
