Gulbransen Teledial - Self Tuning Ch=A1
Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335246
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage

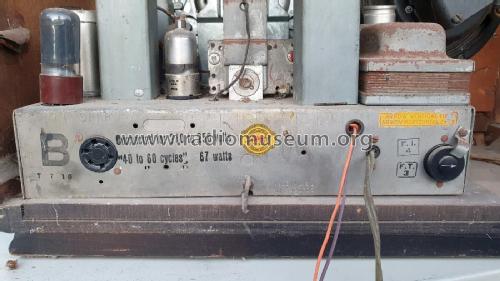

- Alternating Current supply (AC) / 220-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Gulbransen Teledial - Self Tuning Ch=A1 - Cromwell, Gulbransen NZ,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 585 x 395 x 270 mm / 23 x 15.6 x 10.6 inch
- Notes
-

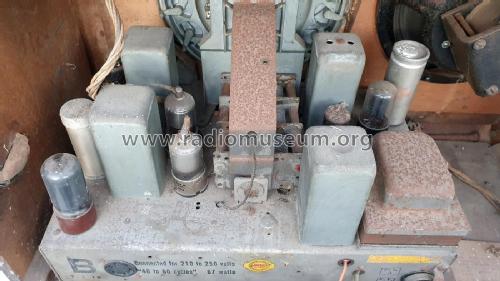

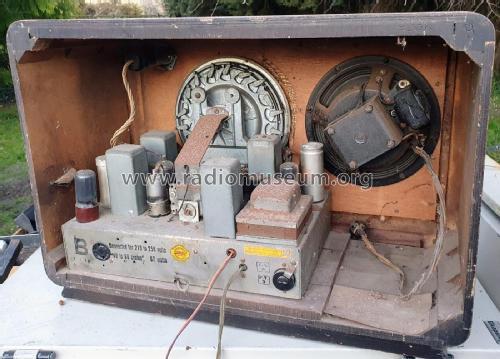

8-valve, including magic eye, superhet with RF stage.

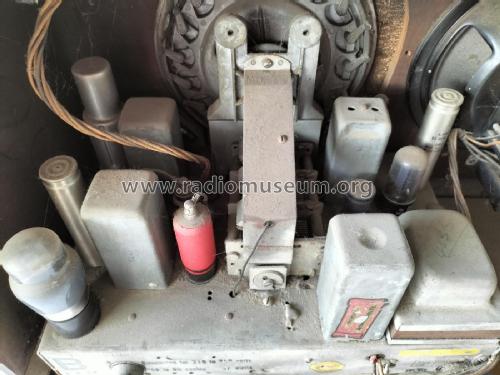

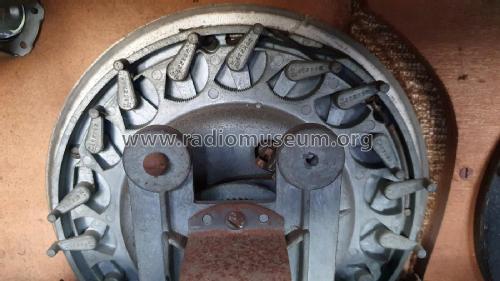

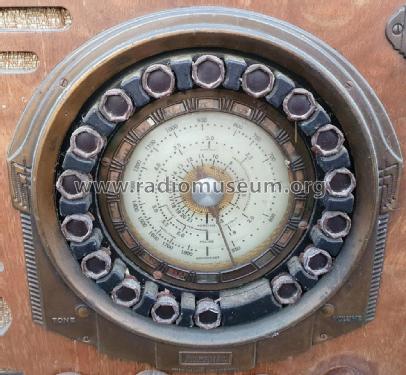

Incorporates telephone dial tuning.
Also available in a console version.

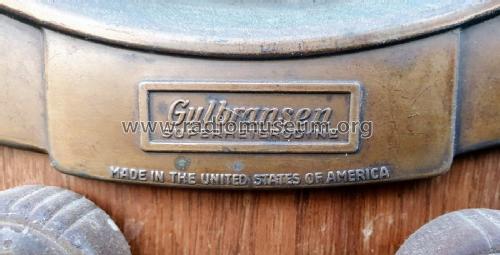

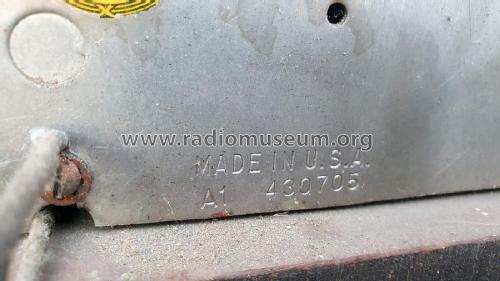

An export version of the Wells-Gardner & Co.; Chicago, Model A1 modified to work on 230 VAC.
- Mentioned in
- -- Original prospect or advert (Press, Volume 73 Sep 1937, Page 22)
- Literature/Schematics (1)
- -- Original prospect or advert (Waikato Times, Volume 121 Aug 1937, Page 25)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
