02CB Ch= 55
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36079
Stein-Pre-War-Consoles
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

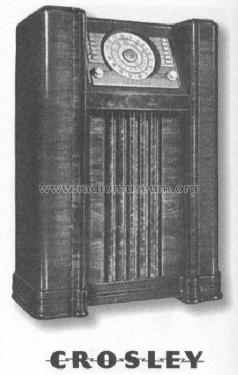

- Model: 02CB Ch= 55 - Crosley Radio Corp.;
- Shape
- Console with Push Buttons.
- Notes
-
Six station selector push buttons. six push buttons controlling a "Master Tone Control" system wich provides more than 60 different combinations of bass and high notes.
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (3)
- Crosley Folder 1942 for Season 1941/42.
