10-418MU

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1950 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
253305

Schematics

10-418MU ; Crosley Radio Corp.; (ID = 2794229) Television — Crosley Radio Corp.; 10-418MU (3)

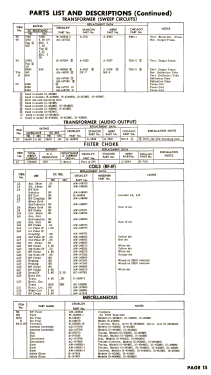

10-418MU ; Crosley Radio Corp.; (ID = 2794230) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794231) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794232) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794233) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794234) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794235) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794236) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794237) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794238) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794239) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794240) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794241) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 2794242) Television — Crosley Radio Corp.; 10-418MU (3)

10-418MU ; Crosley Radio Corp.; (ID = 1674446) Television — Crosley Radio Corp.; 10-418MU (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
21

Valves / Tubes
6AU6 6T8 6V6 6AU6 6AU6 6AU6 6AG5 6AL5 6AG5 12AU7 6SN7GT 6SN7GT 6SN7GT 6BG6G 1B3GT 6W4GT 5U4G 6AB4 6AK5 6AB4 12LP4

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: 10-418MU - Crosley Radio Corp.;

Shape
Console, Lowboy (legs < 50 %).

Notes
Crosley model 10-418MU is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner AW-146843 and picture tube 12LP4 or 12TP4 or 12QP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Vol. 10/50 95A-3 Set 95A Folder 3)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 114, Folder 3 dated 11-50)

Author
Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
