• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36135

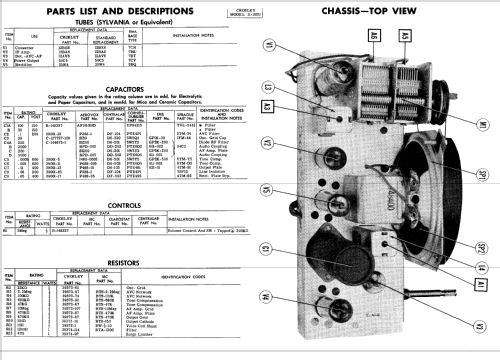

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 or 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 105 -125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 11-105U Ch= 301 - Crosley Radio Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10 x 5.7 x 6.2 inch / 254 x 145 x 157 mm

• Notes

• Crosley model 11-105U is an AC-DC operated superheterodyne receiver with loop antenna.
  Color: chartreuse, power consumption 35W, chassis number 301A2340.

• Net weight (2.2 lb = 1 kg)
• 1.850 kg / 4 lb 1.2 oz (4.075 lb)

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 3-51, Set 127, Folder 5)
