11-109U Decorator Ch= 302
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1951/1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36140
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / AC/DC 117=105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Power out
- 1 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 11-109U Decorator Ch= 302 - Crosley Radio Corp.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-

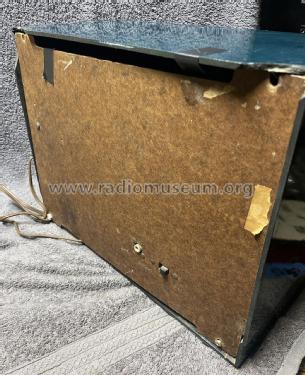

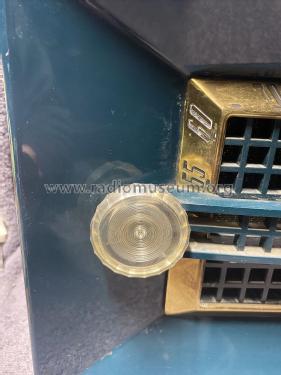

Crosley model 11-109U is an AC-DC operated superheterodyne receiver with loop antenna.
The Crosley models 11-106U (color: Nubian Black), 11-107U (Bahama Beige), 11-108U (Royal Burgundy) and 11-109U (Hunter Green) with chassis 302 share the same Rider's schematic 21-18 to 21-22. The cabinet is of painted Bakelite.
Collector's Guide AR7.Ed. says burgundy plastik for the 11-108U and beige plastik for the 11-107U and green plastic to 11-109U.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (Beitman Radio Diagrams 1951)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-52, Set 155, Folder 5)
