• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36152

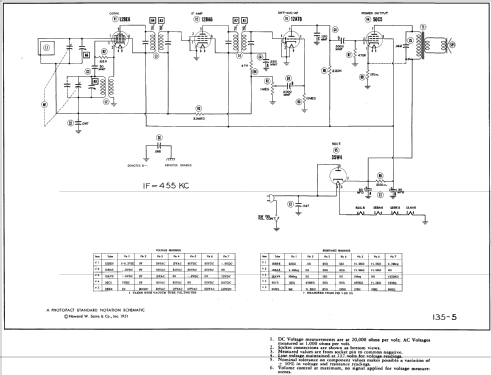

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 105 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

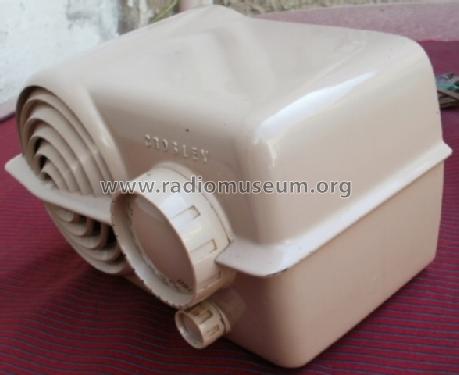

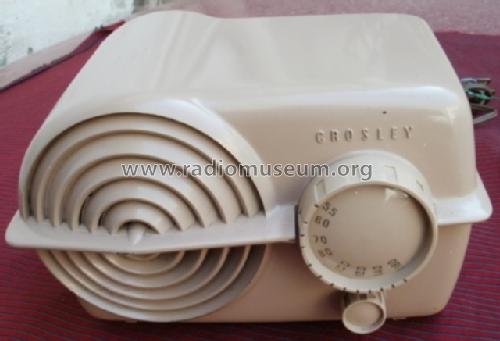

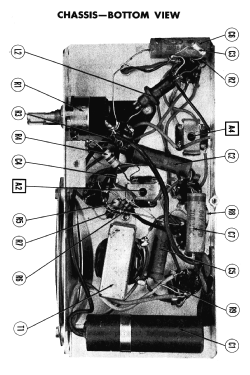

• Model: 11-118U "Serenader" Ch= 330 - Crosley Radio Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.2 x 5.7 x 5.75 inch / 234 x 145 x 146 mm

• Notes

• Crosley model 11-118U is an AC-DC operated superheterodyne receiver with loop antenna.
  Color= Bahama Beige.



• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 11, 1951

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (Rider's Perpetual, Volume 22)
