• Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80756

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

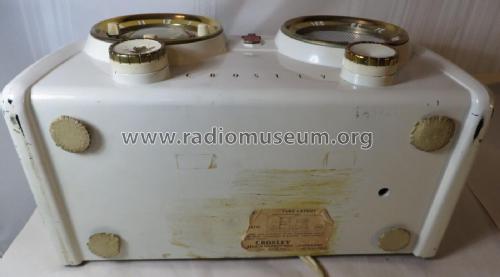

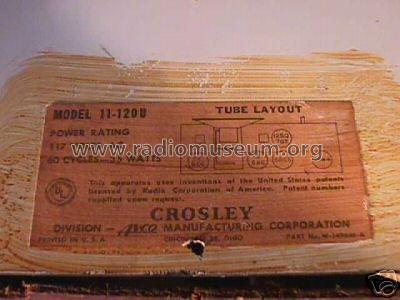

  • Model: 11-120U Ch= 311 - Crosley Radio Corp.;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • Color=white
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 11, 1951
