• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 340629

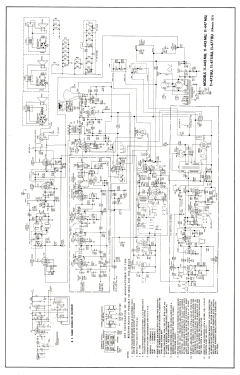

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6CB6 12AT7 6AU6 6T8 6V6GT 6AU6 6AU6 6AG5 or 6AU6 or 6BC5 6AG5 or 6BC5 6AL5 6AH6 12AU7 6AU6 6SL7GT 6C4 6V6GT 6SN7GT 6BQ6GT 6BQ6GT 1B3GT 6W4GT 5U4G 5U4G 16TP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 11-472BU Ch= 321 - Crosley Radio Corp.;

• Notes

• Crosley model 11-472BU is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 321, a VHF- tuner and picture tube 16TP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 115, Folder 1A dated 12-50)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 1791 models, 1048 with images and 1282 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
