• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36207

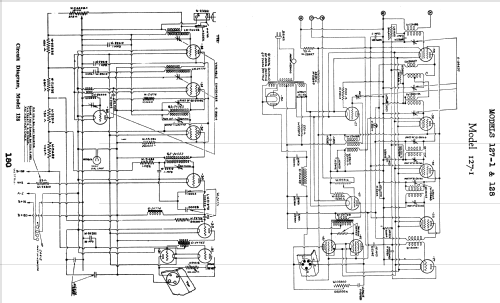

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 32 30 32 32 30 30 31 31

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 2 & 22.5 & 180 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 128 "Battery Mayor" Ch= 128 - Crosley Radio Corp.;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 16.75 x 17.5 x 9.75 inch / 425 x 445 x 248 mm

• Notes

• The Crosley 128 "Battery Mayor" is an Battery operated 8 tube BC band receiver.  Has push pull audio output stage. Has shadow dial that uses neon lamp and continous (stepless) tone control.

  From the Crosley News Brochure:  The beautiful front panel is of stump walnut veneer.  The exquisitely curved arch is supported by delicately reeded pillars.  A delightful effect is furnished by the burl maple overlay immediately beneath the arch.  The speaker grill is coved and backed with gold cloth.

  In many cases Crosley used the chassis number as the model number, and added a model name to some models to help distinguish versions that used common chassis.  Here are the models that used the 128 chassis versions:




  Model	Model Type	Chassis
  Battery Mayor	Table	128
  Battery Chieftain	Console	128
  Battery Playboy	Table	128



• Price in first year of sale
• 59.95 $ !

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Literature/Schematics (1)
• - - Manufacturers Literature (The Crosley Service Bulletin No. 41 Dated Aug. 15, 1932)

• Literature/Schematics (2)
• Crosley Radio Service Manual (Crosley Radio Service Manual 1943 and Earlier Page 180)

• Literature/Schematics (3)
• Rider's Perpetual, Volume 3 = 1933 and before (Riders (Crosley) 3-10, 3-12)

• Literature/Schematics (4)
• - - Manufacturers Literature (Crosley News Brochure Dated June 1932)
