128 "Battery Playboy" Ch= 128

Crosley Radio Corp.; Cincinnati (OH)

Data
Forum
Pictures
Collections

  • Year
  • 1932/1933
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 249119

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 22.5 & 180 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 128 "Battery Playboy" Ch= 128 - Crosley Radio Corp.;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes

  • The Crosley 128 "Battery Playboy" is an Battery operated 8 tube BC band receiver.  Has push pull audio output stage. Has shadow dial that uses neon lamp and continous (stepless) tone control.

    In many cases Crosley used the chassis number as the model number, and added a model name to some models to help distinguish versions that used common chassis.  Here are the models that used the 128 chassis versions:


    Model Model Type Chassis
    Battery Mayor Table 128
    Battery Chieftain Console 128
    Battery Playboy Table 128



  • External source of data
  • Ernst Erb
  • Circuit diagram reference

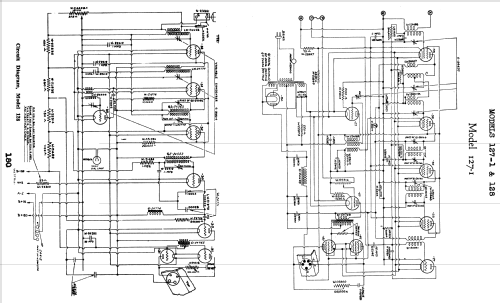

  • Rider's Perpetual, Volume 3 = 1933 and before
  • Literature/Schematics (1)

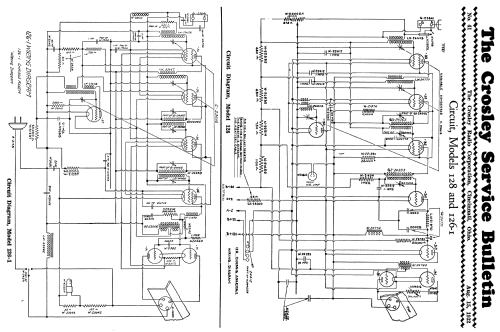

  • - - Manufacturers Literature (The Crosley Service Bulletin No. 41 Dated Aug. 15, 1932)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
