Model 167 Ch= 1316
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36218

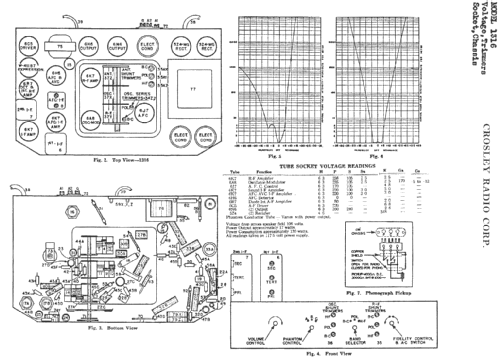

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 17 W (unknown quality)
- from Radiomuseum.org
- Model: Model 167 Ch= 1316 - Crosley Radio Corp.;
- Notes
-
13th Tube is a "Phantom Conductor Tube" W41187
Beginning 1936, Crosley introduced "Sales Model Numbers" along with chassis numbers. This model is Sales Model Number 167 with chassis 1316.
Stein specifies a 7 tube complement.
- Price in first year of sale
- 150.00 $
- External source of data
- Ernst Erb
- Source of data
- Antique Radios, Johnson 1986
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 138)
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (2)
- Pre-War Consoles
