• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106088

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

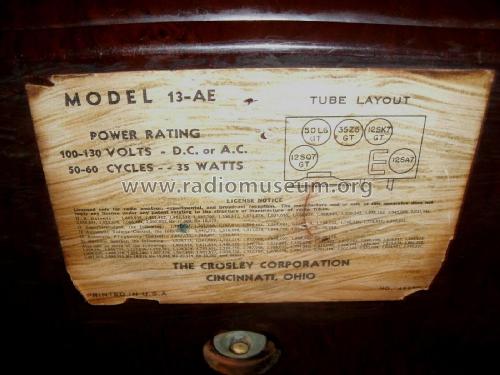

• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 13 AE - Crosley Radio Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7.5 x 6.5 inch / 305 x 191 x 165 mm

• Notes

• Color= Brown with "Gold-Glow" dial.

• Price in first year of sale
• 12.95 $

• Literature/Schematics (1)
• Crosley 20th Anniversary Special 1941 catalogue

• Literature/Schematics (3)
• Crosley Folder No. 2901, Season 1940/41.

• Literature/Schematics (4)
• Table Top Radios Vol. 4 Stein 2003 (page 66.)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
