Battery Eight ("8") Ch= 143 (8-B-1)
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36236

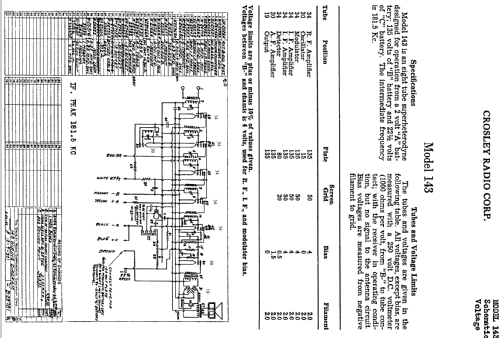

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 181.5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 2 & 22.5 & 135 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Battery Eight Ch= 143 - Crosley Radio Corp.;
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 17 x 17.125 x 7.875 inch / 432 x 435 x 200 mm
- Notes
-
8-tube battery receiver (farm radio). Continuous tone and static control, push-pull output, neon dial lamp.
The Crosley Service Supplement Index also lists chassis 8-B-1 in parenthesis for this model.
- Price in first year of sale
- 47.50 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 70)
- Literature/Schematics (1)
- - - Manufacturers Literature (Crosley Broadcaster 12, Nov. 15 1933)
