148CP

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1948

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36246

Schematics

148CP ; Crosley Radio Corp.; (ID = 281811) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281812) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281813) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281814) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281815) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281816) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281817) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281818) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281819) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281820) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281821) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281822) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281823) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 281824) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994778) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994779) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994780) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994781) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994782) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994783) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994784) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994785) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994786) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994787) Radio — Crosley Radio Corp.; 148CP (3)

148CP ; Crosley Radio Corp.; (ID = 994777) Radio — Crosley Radio Corp.; 148CP (2)
SAMS Photofact

148CP ; Crosley Radio Corp.; (ID = 281810) Radio — Crosley Radio Corp.; 148CP (2)

148CP ; Crosley Radio Corp.; (ID = 3017768) Radio — Crosley Radio Corp.; 148CP (1)

148CP ; Crosley Radio Corp.; (ID = 3017769) Radio — Crosley Radio Corp.; 148CP (1)

148CP ; Crosley Radio Corp.; (ID = 3017770) Radio — Crosley Radio Corp.; 148CP (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
14

Valves / Tubes
6SG7 6AC7 6SA7 7F8 6E5 6SG7 6SG7 6SH7 6H6 6SQ7 6SQ7 6V6GT 6V6GT 5U4G

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast, 2 Short Wave plus FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 105 - 125 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
18 W (unknown quality)

Material
Wooden case

from Radiomuseum.org

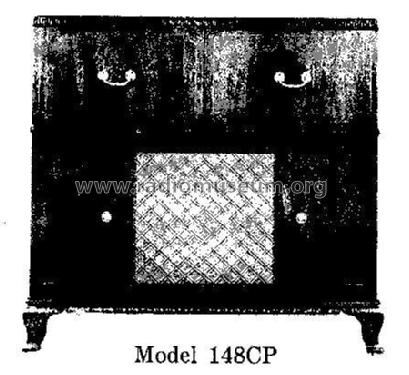

Model: 148CP - Crosley Radio Corp.;

Shape
Console, Lowboy (legs < 50 %).

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 19 = 1949 and before

Mentioned in
The Radio Collector's Directory and Price Guide 1921 - 1965

Literature/Schematics (4)
Photofact Folder, Howard W. SAMS (Set 42, Date 7/48, Folder 4812-6)
