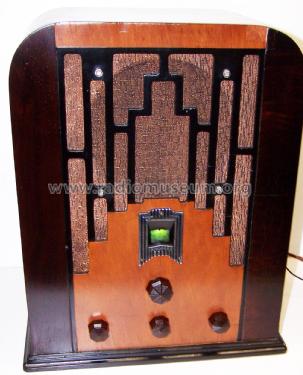

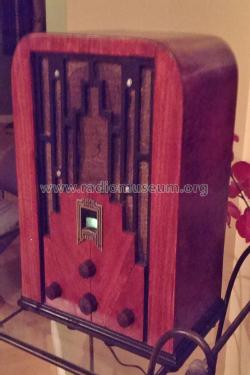

Dual Seventy (70) Ch= 179 Late - Tombstone style
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135987
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 181.5 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dual Seventy Ch= 179 [Late - Tombstone style] - Crosley Radio Corp.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
Wood with chrome. There is an earlier cabinet in the Empire style.
- Source of data
- Table Top Radios Vol. 1 Stein 98
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in
- - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 76)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
