• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 297922

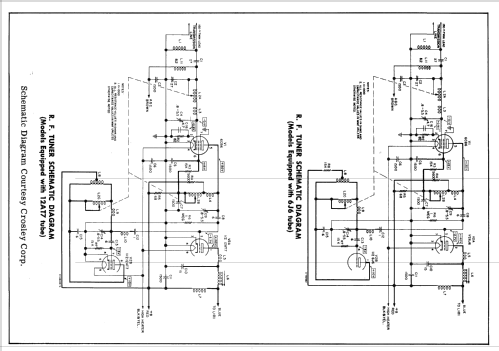

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6CB6 6J6 or 12AT7 6AU6 6AU6 6AU6 6AG5 or 6BC5 6AL5 6AH6 6SN7GT 6AU6 6AL5 6V6GT 6AG5 or 6AU6 or 6BC5 6SL7GT 6C4 6V6GT 6SN7GT 6CD6G 1B3GT 6W4GT 5U4G 5U4G 6AU6 20DP4 or 20CP4

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• from Radiomuseum.org
• Model: 20CDC2 Ch= 323-3 - Crosley Radio Corp.;

• Notes

• The Crosley model 20CDC2 is a 21" b/w TV with US standard VHF tuner for channels 2 thru 13. Equipped with chassis 323-3, and picture tube 20DP4 or 20CP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 316 Dated 5-56 Photofact Servicer)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
