24 AJ

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106007

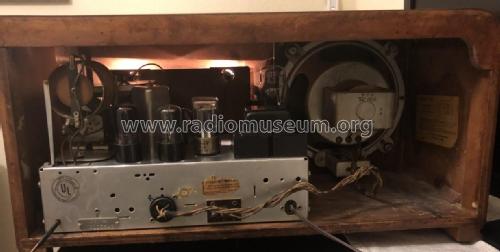

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6A8GT 6SK7 6SQ7 6J5GT 6K6GT 6K6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 24 AJ - Crosley Radio Corp.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 21.5 x 11 x 9 inch / 546 x 279 x 229 mm

• Price in first year of sale
• 29.95 $

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 52.)

• Literature/Schematics (1)

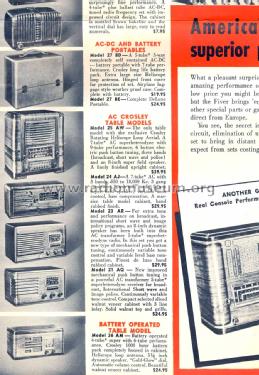

• Crosley 20th Anniversary Special 1941 catalogue

• Literature/Schematics (2)
• Table Top Radios Vol. 4 Stein 2003 (page 66.)

• Literature/Schematics (3)
• Crosley Folder No. 2901, Season 1940/41.

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
