- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36308
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 20 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 31 BF - Crosley Radio Corp.;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 33.7 x 33 x 18 inch / 856 x 838 x 457 mm
- Notes
-
Radio-Phonograph-Recorder and Public Adress System combination. Automatic Record Changer see Modell ID 36427.
- Price in first year of sale
- 149.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965

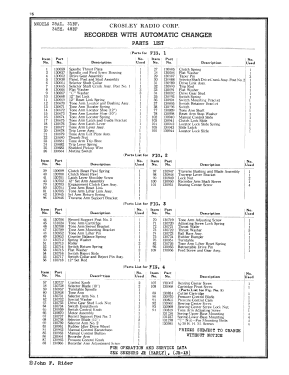

- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Crosley 20th Anniversary Special 1941 catalogue
- Literature/Schematics (3)
- Crosley Folder No. 2901, Season 1940/41.
