• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36322

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

• Main principle
• TRF without regeneration; Neutrodyne

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / ? & 90 & 135 & -4.5 & -22.5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: 401 - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Notes

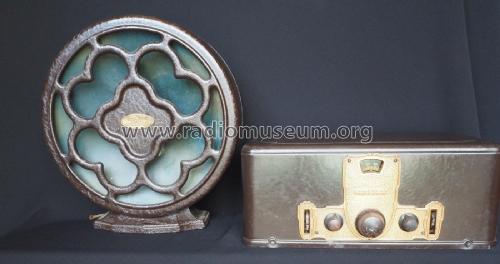

• The Crosley model 401 is a battery operated four tube TRF receiver.
  First stage (RF amplification) uses a neutralization (neutrodyne) circuit. Grid leak detector followed  by a two-stage transformer coupled AF amplifier.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
