• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36337

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

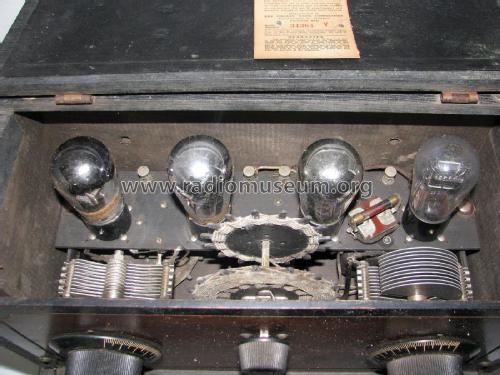

• UX201A UX201A UX201A UX201A

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

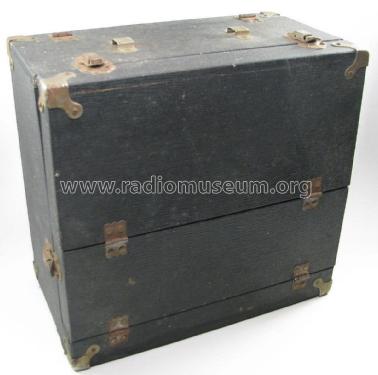

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

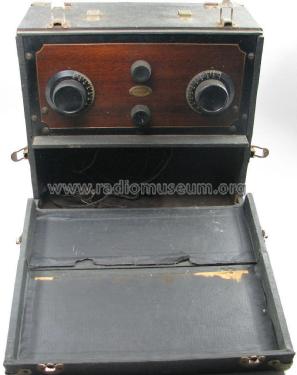

• Model: 4-29P - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 14 x 13.5 x 0 inch / 356 x 343 x 0 mm

• Notes

• Two dials (primary tuning control knobs)

• Price in first year of sale
• 32.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
