• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230283

• Number of Tubes
• 1

• Valves / Tubes
• WD12 or C12_Triode

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

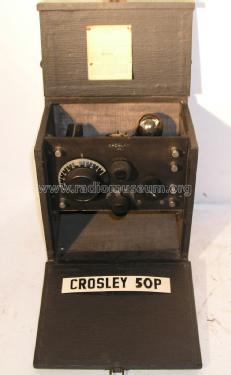

• Model: 50P [Leatherette case] - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8 x 9.5 x 7 inch / 203 x 241 x 178 mm

• Notes

• Later version of the Crosley 50 portable regenerative receiver with a leatherette case.

• External source of data
• Original prospect.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
