517 Fiver DeLuxe Compact

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1937/1938

perfect model

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36378

Schematics

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 213621) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (3)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 213623) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (3)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 213622) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (3)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 73127) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1190450) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1190452) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1040020) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
Radio Retailing USA

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1190449) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1190451) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1364937) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1392758) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1560182) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1560183) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1560184) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (1)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 1822145) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885156) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885157) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

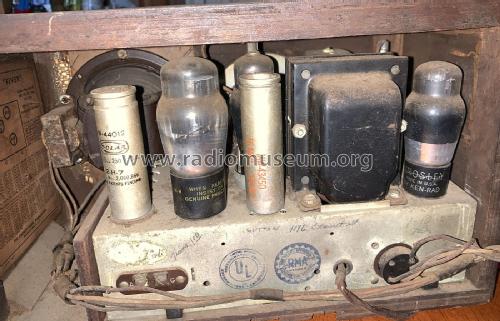

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885158) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885159) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885160) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2885161) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay item number:195670156244

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2942693) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay-Artikelnummer: 134682448690

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2942694) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay-Artikelnummer: 134682448690

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2942695) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay-Artikelnummer: 134682448690

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2942696) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay-Artikelnummer: 134682448690

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 2942697) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
eBay-Artikelnummer: 134682448690

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 3104207) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
Radio Today, Aug. 1937, page 57

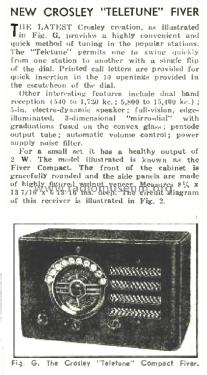

517 Fiver DeLuxe Compact ; Crosley Radio Corp.; (ID = 3104208) Radio — Crosley Radio Corp.; 517 Fiver DeLuxe Compact (2)
