- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1924
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36676
Crosley Model 52 Front view top open

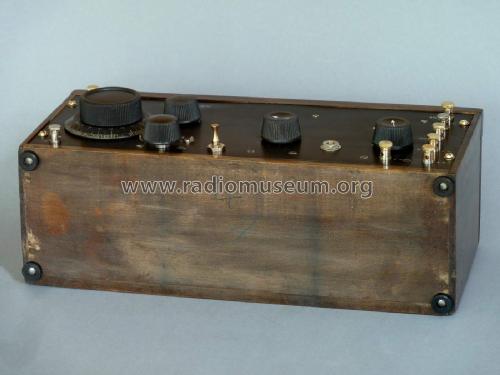

Crosley Model 52 Front view

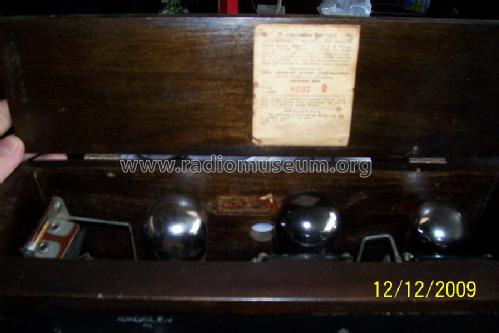

Crosley Model 52 Top open chassis view
Crosley Model 52 Chassis bottom view
Crosley Model 52 Chassis rear view

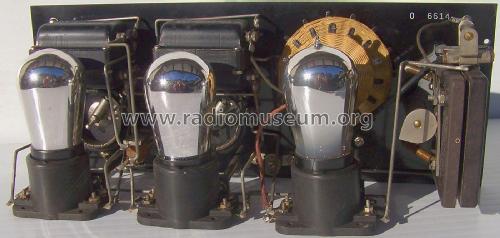

Crosley Model 52 Chassis top view
aus ebay, mit Erlaubnis des Verkäufers mono
aus ebay, mit Erlaubnis des Verkäufers mono
aus ebay, mit Erlaubnis des Verkäufers mono
Crosley 52
Crosley 52 particolare valvole e label
Crosley 52 Front View
Crosley 52 Top Open
Crosley 52 rear chassis
Crosley 52 Top

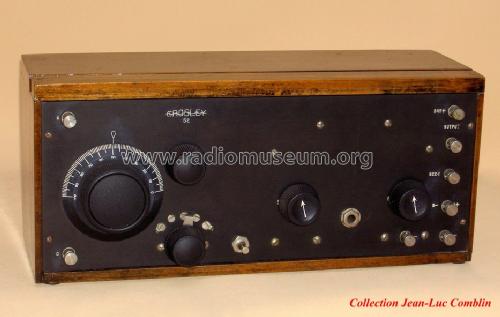

Crosley 52 - Front.
Crosley Technic Page
Crosely Print Ad 1924
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF with regeneration
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 52 - Crosley Radio Corp.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 13.8 x 6 x 8 inch / 351 x 152 x 203 mm
- Notes
- One dial (primary tuning control knob)
- Price in first year of sale
- 30.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (2)
- Radio Broadcast, Apr. 1925, p. 1134
- Other Models
-
Here you find 1797 models, 1050 with images and 1291 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
Collections
The model 52 is part of the collections of the following members.
Forum contributions about this model: Crosley Radio Corp.;: 52
Threads: 2 | Posts: 4
The Crosley 52 Operating Instructions ( at crosleyradios.com) explain that two 45 volt B batteries are required, with the +45V terminal on the second battery connected to the B45+ terminal on the radio. With the two 45 volt batteries connected in series, there is actually +90 volts at this terminal with respect to B-, so the modern schematic currently shown here should be corrected to show 90 volts, rather than 48 volts, connecting through the speaker to the output tube's plate. The instructions explain that low volume will be heard if 90 volts is not used.
Also, as explained in the instructions, the Crosley 52 came from the factory with an internal wire connecting the A- and C- terminals together. There is no mention of using a C battery, or connecting anything to the C- binding post, when using 01A tubes. But, it may be beneficial to use a C battery if using WD12 or UV199 tubes and in those cases the internal wire must be cut before connecting power to the C- binding post.
Regards, Greg Farmer
Greg Farmer, 03.Jun.22
Good Luck,
Paul P
Paul E. Pinyot † 2013, 17.Aug.05
